Description

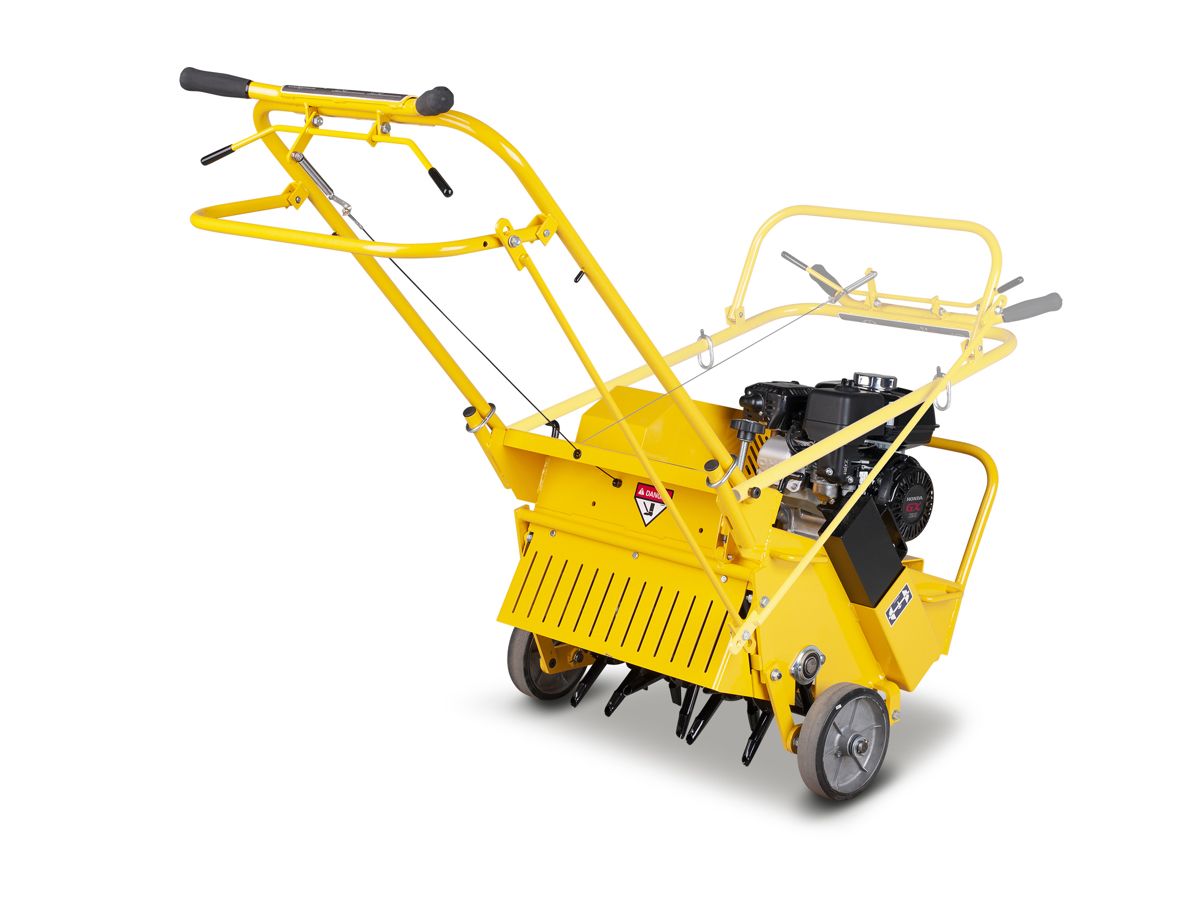

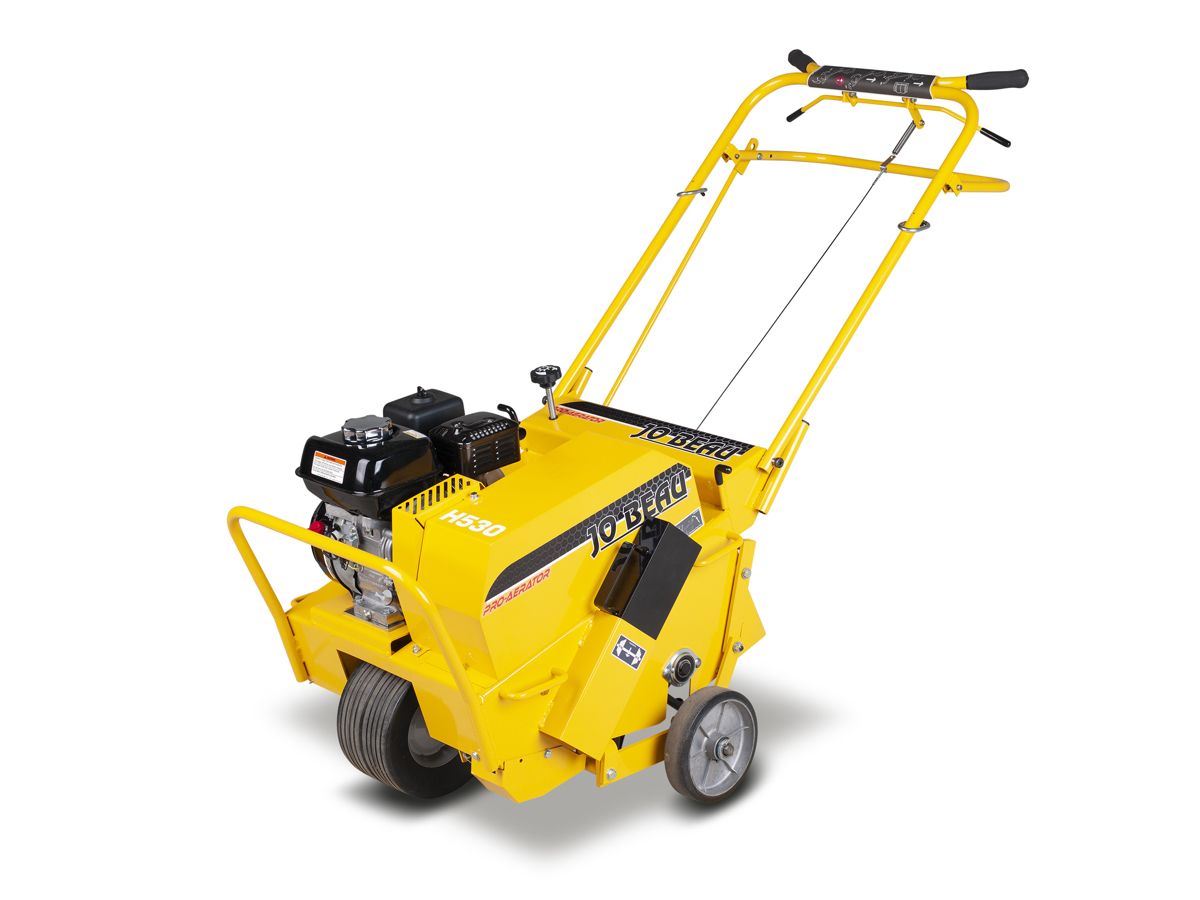

Greater productivity, better maneuverability, and a user-friendly design are just a few of the outstanding features that make the Jo Beau® H530 (482 mm (19″) aerating width) lawn aerator a breeze to operate. The aerator digs holes in the lawn. The free-wheeling tine system allows even inexperienced users to easily aerate corners and tight areas. The H530 is equipped with 30 interchangeable closed hollow pins of 13 mm (1/2").
Operators of the H530 will appreciate its simple design and low maintenance costs. A folding handle, lift handles and semi-pneumatic front tire provide easy transport, while removable side weights offer optimal soil penetration and balance for easier slope aeration. The aerator is provided of a Honda GX120 engine.
All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.
✓ 30 aerator pins
✓ Collapsible handlebar
✓ Very compact for transport
✓ Removable weights
✓ Extremely maneuverable
✓ Maintenance-friendly
Operators of the H530 will appreciate its simple design and low maintenance costs. A folding handle, lift handles and semi-pneumatic front tire provide easy transport, while removable side weights offer optimal soil penetration and balance for easier slope aeration. The aerator is provided of a Honda GX120 engine.
All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.
✓ 30 aerator pins
✓ Collapsible handlebar
✓ Very compact for transport
✓ Removable weights
✓ Extremely maneuverable
✓ Maintenance-friendly
Technical specifications
Performance
Working width
482 mm (19 In)
Working depth
0- 76 mm (0-3 In)
Engine
Brand & type
Honda GX120 - 1 cyl. 4-stroke
Power
2,4 kW (3,2 Hp)
Drive
Petrol engine
Consumption
1,0 L/h - 3600 RPM
Noise level Lw (A)
100 dB(A)
Design
Dimensions (LxWxH)
1460 x 755 x 1309 mm (57.5 x 29.75 x 51.5 In)
Weight
130 kg (288 Lbs)
Drive traction
Chain drive
Chassis
Powder-coated steel
Knife transmission
Industrial v-belt
Foldable handlebar
Standard
Number of tines
30
Aerating pattern
96 x 106 mm (3.8 × 4.2 In)
Detachable weights
Standard
Options
Maintenance alarm / Hour counter
✓
